LINE BLINDS
M/s Chemtech Industrial Valves Ltd, Mumbai, India, is one of the leading manufacturers of LINE BLINDS for a wide variety of Blinding Applications.
CHEMTECH” PATENTED LINE BLINDS are carefully Designed & Manufactured to provide 100% MAN SAFE downstream Isolation so that you can carry out all your periodic maintenance work with 100% Safety & Peace of Mind.
Line Blinding (or Blanking) is done to Isolate Pipelines as part of a Process or as a Safety precaution when 100% Positive Shut Off is required during Shut Downs. While Blinding is being carried out every day by Plant Operators worldwide, however, the Basic Methodology being adopted remains the same for the last 150 years.

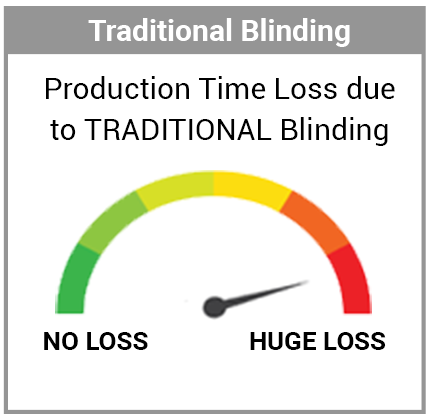

CHEMTECH has developed Unique Line Blinds that provide 100% Positive Isolation in a matter of Minutes, compared to Hours spent in Traditional Blanking. Our Line Blind Enhances Safety of Plant & Personnel by eliminating chances of Hazards, Reduces Production Losses due to Blinding by over 95%, and can be operated by a Single Operator.
Traditionally, the most widely used method of Blinding has been to insert a Metal Plate, also called a Blind, manually between 2 Flanges. This approach is fraught with many disadvantages, including:
-
It is Very Labor Intensive, with at least 2 to 8 personnel required to effect the Blinding
-

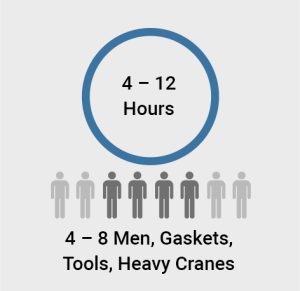

Very Time Consuming, taking from 1 to 6 hours for Blinding, depending on the size of the Pipeline, thereby resulting in Huge Production Losses
-
Requires Tools & Tackles including Crane, Man Lifter depending on the size of the Line
-
There are chances of Potential Hazard including inhalation of Toxic Fumes, spills of Fluids and also risk of Fire Hazards / explosions.
-
Line needs to be spread for inserting the Blind, which induces Stresses in the Pipe
RANGE
-
Types: Open Type / Encased Type / Swing Type / Manual Type
-
Size Range: 400 MM to 4,000 MM
-
Pressure Rating: Up to 3 Kg / cm2
-
MOC: Carbon Steel / Stainless Steel
-
Actuation: Electro Hydraulic / Hydraulic / Electrical / Manual
Applications in Steel Plants
-
In & Around CO Gas & BF Gas Fuel Lines
-
Low / High Pressure Applications
-
For absolute Tight Shut Off
-
In Electro Precipitation Plants for Furnace Gas
-
In Dust Extraction Plants
By using CHEMTECH LINE BLINDS, Blinding Time is reduced from Several HOURS to FEW MINUTES, while ensuring a Much Safer Working Environment
Traditional Blinding Techniques are very Time Consuming, Unsafe, Uneconomical & Labor Intensive
Direct savings & increase in production by using CHEMTECH LINE BLIND CHEMTECH LINE BLIND
| Pipeline size | Time required for Blinding using BLANK PLATE (TRADITIONAL METHOD) | Time required for Blinding using CHEMTECH LINE BLIND | EFFECTIVE SAVINGS | ENHANCED PRODUCTION BY USING CHEMTECH LINE BLIND |
|---|---|---|---|---|
DN 150 – DN 400 |
|
|
|
2 – 8 HOURS |
DN 150 – DN 400 |
|
|
|
8 – 24 HOURS |
Plant Operators are deriving Plenty of Direct & Indirect Benefits by using CHEMTECH Line Blind for Shutdown purposes, including :
-
Reduced Pre Purge Time by using Line Blind Valves as work can be Immediately started after Blanking the Line using Line Blind Valves
-
Reduced Maintenance Costs as No Consumables, No Tools, Wedges, Cranes are required to operate the Valve & to effect Successful Blinding
-
Prevents Accidents due to Leakage & also Prevents Environmental Pollution
-
Quick & Positive Action can be taken in case of Emergencies, thereby reducing overall Maintenance Costs
RANGE
-
Types: Open Type / Encased Type / Swing Type / Manual Type
-
Size Range: 400 MM to 4,000 MM
-
Pressure Rating: Up to 3 Kg / cm2
-
MOC: Carbon Steel / Stainless Steel
-
Actuation: Electro Hydraulic / Hydraulic / Electrical / Manual
Applications in Steel Plants
-
In & Around CO Gas & BF Gas Fuel Lines
-
Low / High Pressure Applications
-
For absolute Tight Shut Off
-
In Electro Precipitation Plants for Furnace Gas
-
In Dust Extraction Plants
A Solution offering the Highest R.O.I
Our Customers have REAPED BENEFITS TO THE TUNE OF 5 TIMES THE LINE BLIND COST IN A SINGLE SHUTDOWN, taking into account all Operational Cost savings & the Enhanced Production due to Much Lesser Blinding Time offered by CHEMTECH Line Blinds.
Applications in Steel Plants
-
In & Around CO Gas & BF Gas Fuel Lines
-
Low / High Pressure Applications
-
For absolute Tight Shut Off
-
In Electro Precipitation Plants for Furnace Gas
-
In Dust Extraction Plants
| Typical Applications of Line Blinds | |||
|---|---|---|---|
| Coke Oven Gas Lines | Blast Furnace Gas Line | Mixed Gas / Nitrogen Gas Lines | Steam Lines |
| Tankfarms | Loading Stations | Ethylene Furnaces | Mixing Stations |
| Coke Oven Gas Lines | Blast Furnace Gas Line | Mixed Gas / Nitrogen Gas Lines | Steam Lines |
| Tankfarms | Loading Stations | Ethylene Furnaces | Mixing Stations |
Our entire range of Line Blind Offerings are designed in accordance to Industrial Standards including ASME, EN-ISO, DIN & BS Standards.
We are equipped with Latest Simulation Software's and all our Valves are tested during Design stage in Solidworks 3-D for a variety of tests including Stress Analysis, Displacement Analysis, Factor of Safety considerations to name a few.
Our Line Blinds incorporate a Unique CAM Operated Swing Type Design to Offer 100% Positive Isolation
A Spectacle Blind rotates between Closed & Open positions along the body axis
A Center Locking Arrangement ensured No Errors in placement of Spectacle Plate
| DESIGN USP |
|---|
| CHEMTECH LINE BLIND uses a Unique Elliptical Design Spectacle Blind for Self Balancing Arrangement during movement, thereby increasing Safety during Operation |
Sectional Image in Open Position
Sectional Image in Closed Position
Plant Operators are deriving Plenty of Direct & Indirect Benefits by using CHEMTECH Line Blind for Shutdown purposes, including :
-
Reduced Pre Purge Time by using Line Blind Valves as work can be Immediately started after Blanking the Line using Line Blind Valves
-
Reduced Maintenance Costs as No Consumables, No Tools, Wedges, Cranes are required to operate the Valve & to effect Successful Blinding
-
Prevents Accidents due to Leakage & also Prevents Environmental Pollution
-
Quick & Positive Action can be taken in case of Emergencies, thereby reducing overall Maintenance Costs
