Goggle Valves

CHEMTECH GOGGLE VALVES are Designed & Manufactured to provide Complete Man-Safe Isolation. Our Goggle Valves are supplied in Electro-Hydraulic, Fully Hydraulic as well as Fully Electrical Configurations with Complete Automation Capabilities. CHEMTECH GOGGLE VALVES are known in the Industry for having the Shortest Commissioning Timeline due to our Plug & Play Design.

ENCASED LINEAR TRAVEL Goggle Valve

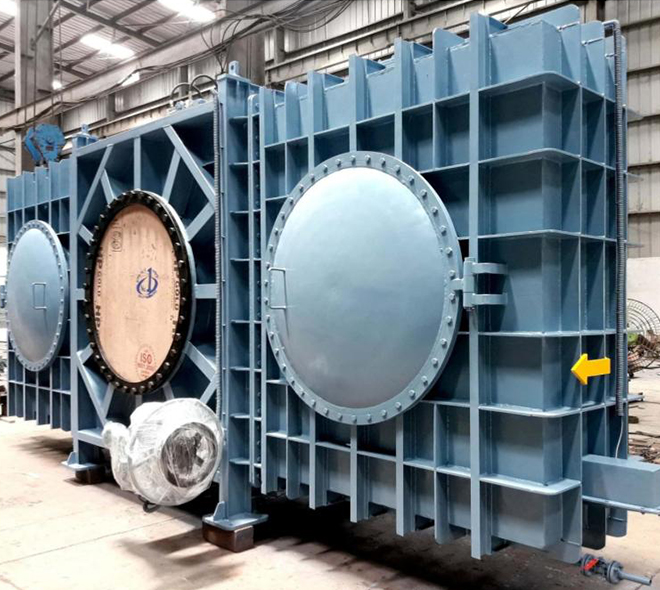

DN 1400 Goggle Valve

OPEN TYPE LINEAR TRAVEL GOGGLE VALVES - HORIZONTAL ORIENTATION

DN 2400 Goggle Valve Horizontal Orientation Open Type

DN 2400 Goggle Valve Horizontal Orientation Open Type

OPEN TYPE LINEAR TRAVEL GOGGLE VALVES - VERTICAL ORIENTATION

DN 2400 Goggle Valve Vertical Orientation Open Type

DN 2400 Goggle Valve Vertical Orientation Open Type

OPEN TYPE SWING TRAVEL GOGGLE VALVES

DN 400 Goggle Valve

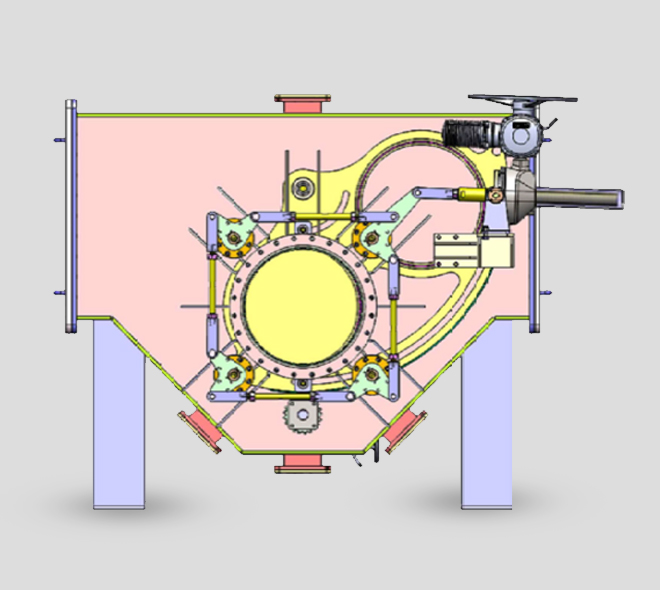

ENCASED Type Swing TRAVEL Goggle Valve

RANGE

  • Types: Open Type / Encased Type / Swing Type / Manual Type

  • Size Range: 400 MM to 4,000 MM

  • Pressure Rating: Up to 3 Kg / cm2

  • MOC: Carbon Steel / Stainless Steel

  • Actuation: Electro Hydraulic / Hydraulic / Electrical / Manual

Applications in Steel Plants

  • In & Around CO Gas & BF Gas Fuel Lines

  • Low / High Pressure Applications

  • For absolute Tight Shut Off

  • In Electro Precipitation Plants for Furnace Gas

  • In Dust Extraction Plants

Special Features:

  • 100% Shut Off of Media Flow Provided with 100% MAN Safe Isolation compliant with all relevant Safety Standards

  • Very Low Maintenance Required

  • Plate Clamping effected through Hydraulic / Electrical Rams

  • All our Fabricated Bodies undergo VSR Test, thereby ensuring 100% Weld Joints
